Phase and interface layer detection

Measurement solutions

The continuously increasing degree of automation requires measurement solutions for the reliable detection of these phases or phase transitions during the ongoing process. The following considerations are decisive:

  • Replacement of manual detection methods (e.g., visual), thereby eliminating subjective influencing factors
  • Replacement of error-prone, indirect detection methods (e.g., time-based control), thereby increasing plant safety
  • Improvement of product yield through loss reduction
  • Safety aspects

Batch process

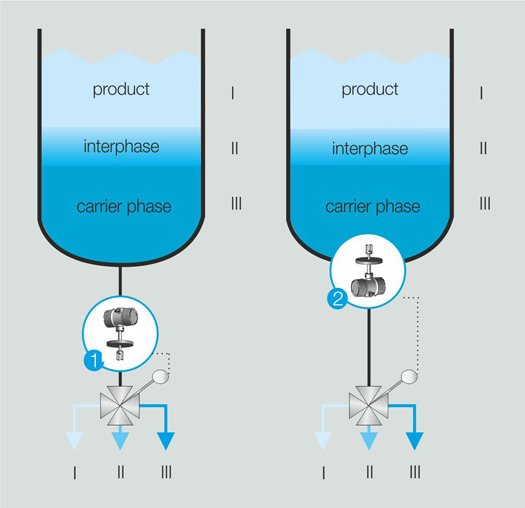

In a batch process, the temporal change in the speed of sound signal is used to control a multi-way valve. This enables precise separation between product, intermediate, and carrier phases. The phase differences can be detected within 250 milliseconds. The sensor is preferably installed in the pipeline. Alternatively, the sensor is integrated into the bottom outlet valve from SchuF. By installing the valve, measurements can be taken directly in the vessel without dead space and without an additional process connection.

G548
Process graphic WSA gas absorber scrubber

Continuous process

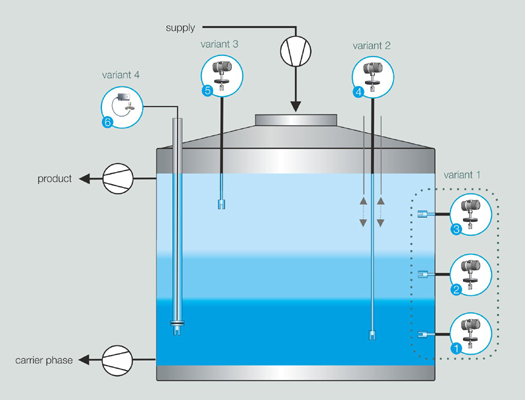

In a quasi-continuous process, sensors installed in a settling tank are used to control the separation of a process stream into a product phase and a carrier phase. In this case, only the speed of sound value characteristic of the respective phase is monitored and kept constant.
In this way, for example, the separation of a wastewater stream into wastewater requiring treatment and wastewater not requiring treatment can be controlled. Depending on the process conditions, the sensor can be installed in various ways.

Describe your application - we will get back to you for a technical consultation!
Together, we will clarify the boundary conditions and possible solution approaches.

* Required fields

Details

Do you already use devices from SensoTech? *
* Required fields

In a large number of process engineering applications, different phases arise in the liquids involved due to the nature of the technology. This applies to both continuous and batch processes.
