Crude oil processing

In addition to applications in the pharmaceutical and food industries, petroleum is primarily used as an energy source and in the chemical industry. Here it is one of the most important raw materials, e.g., in the production of basic chemicals, plastics, and detergents.

The extracted wet oil is a mixture of crude oil, natural gas, saltwater, and impurities and cannot be processed immediately. First, it is processed to achieve the required quality for further processing in a refinery. The purification takes place in special separation plants in several stages. The first purification stage involves the removal of associated gas, followed by the separation of saltwater from the crude oil.

Phase separation using LiquiSonic® Sound velocity measurement

Application

The removal of associated petroleum gas takes place in the gas separator (separator) by swirling the mixture at increased pressure (condensation). The gas escapes and is collected separately and further processed. Additionally, in the separator, the crude oil-saltwater emulsion concentration can be measured using LiquiSonic®can be determined.

The crude oil-saltwater emulsion then enters a separate wet oil tank. Due to the density difference between crude oil and saltwater, the two phases can be separated. The saltwater floating under the oil is pumped out. The separation of saltwater from crude oil can be carried out using LiquiSonic® measurement technology monitored. The characteristic sound velocities of the respective phases are measured and evaluated by the controller. This allows for a phase separation in seconds.

installation

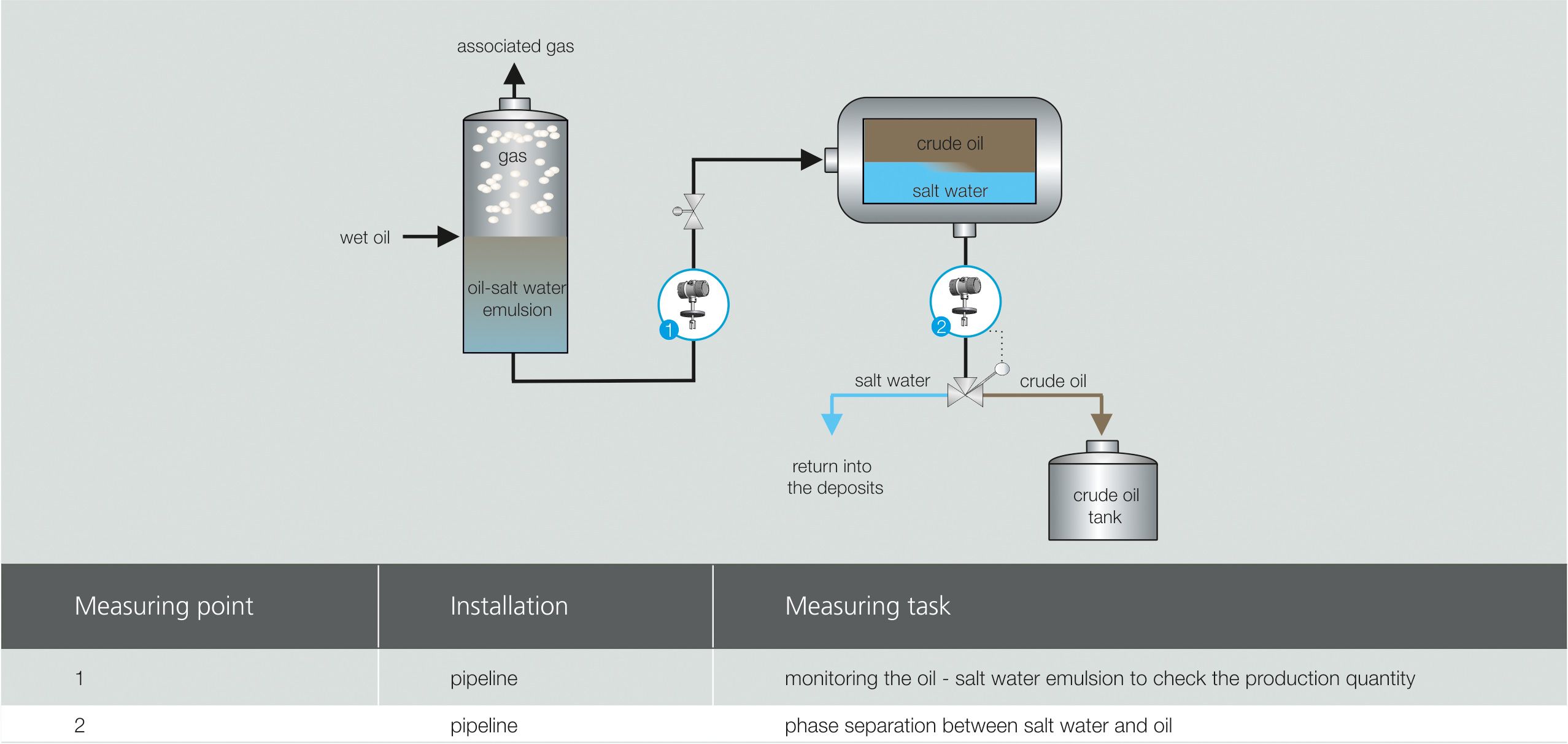

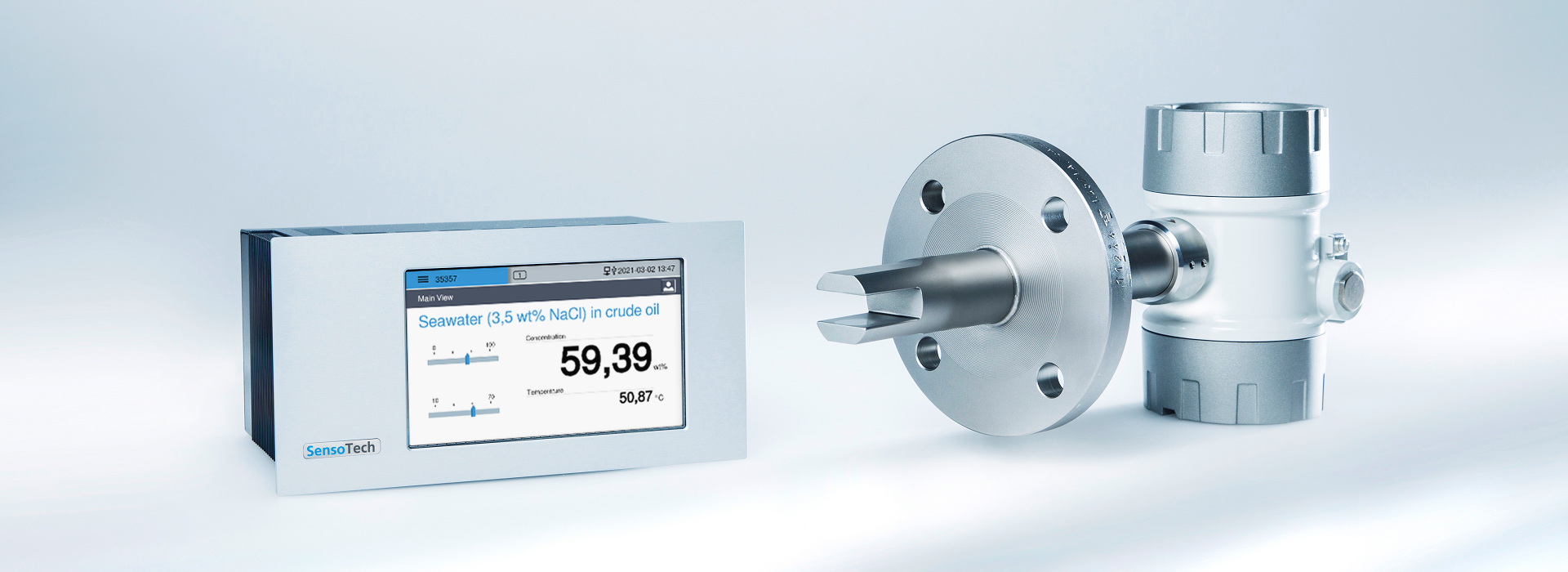

The LiquiSonic® sensors can be easily installed in the transport line after gas separation. Another installation option is at the outlet of the wet oil tank. Here, the bottom drain valve with integrated LiquiSonic® sensor for phase separation in seconds without dead space is recommended. The LiquiSonic® Controller 30 can be connected with up to 4 sensors. This makes it possible to monitor the process at multiple measurement points:

  • Concentration measurement of the oil-saltwater emulsion in the gas separator
  • Phase detection and separation

Typical measurement range:
Concentration range of crude oil: 0 to 100 m%
Temperature range: 10 to 70 °C

Customer benefits

The LiquiSonic® measurement technology guarantees at all times the exact detection of the different phases (oil/water) with an extremely fast response time of less than 1 second. This ensures the required quality for subsequent processing in the refinery. The precise separation of saltwater leads to an increase in crude oil yield.

In addition, the expected product quantity can be determined with the concentration measurement value of the oil-saltwater emulsion in the gas separator.

One of the first steps in crude oil extraction is the separation of associated petroleum gas and saline reservoir water from the extracted wet oil.

Downloads

Crude oil processing

Application report

Crude oil processing | 2 MB
